Relay with PNI CA500 remote control for controlling 1 or 2 garage doors, gates, barriers, 2 relays, 12V power supply

Remote control

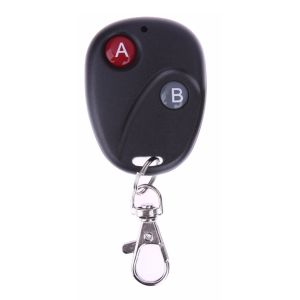

With a wide range of applications, the PNI CA500 can control garage doors, access gates, elevators, elevators, electromagnetic yales, etc. The device includes a transmitter (remote control) and a receiver with 2 independent relays.

Mode of operation

The PNI CA500 remote control relay works in automatic mode only - self-closing, thus pressing the button A or B to open, and on the second press the relay returns to the initial state (doors A, B work independently).

The relay supports pairing a new remote control or deleting an old remote control as follows:

1. To learn a remote control: short press the learn button. The LED lights up. Press the A button on the remote control. The red LED flashes 3 times then stays on to confirm learning the A button to command the first relay.
The red LED stays on. Press the B button on the remote control. The red LED flashes 3 times then turns off to confirm learning. Repeat the procedure for learning additional remotes.

2. To delete the remote controls, press the learning button until the LED turns off. Release the button. The LED will flash 3 times to confirm the operation.
