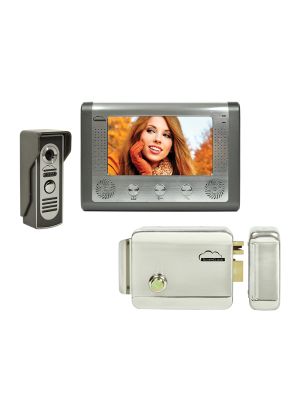

SilverCloud House 715 Video Interface Kit with 7-inch LCD screen and Yala electromagnetism SilverCloud YR300

Fail-secure, normally open actuation
In this configuration, the lock opens upon a 12 V 1A 0.5 second electrical impulse received from an NO circuit (and closes only after the door or gate has been opened and closed) or manually (mechanical components ensure opening from the inside even in the event of power outages).
Opening on the right side
	The applicable electromagnetic door closer SilverCloud YR300 can be mounted on doors that open on the right side inwards. The recommended door thickness is between 35 and 50 mm.
Compatible with intercom or access control systems
The SilverCloud YR300 electromagnetic doorbell can be integrated into an access control or intercom system. The Unlock button on the internal unit of the video intercom in your home can unlock the doorbell, thus allowing visitors access inside.

Audio and video monitoring
The SILVERCLOUD House 715 intercom has a monitor with a resolution of 840 x 234 pixels, a 7-inch diagonal and 420 TV lines. With a modern design and made of quality materials, House 715 offers its users multiple functions, which allow them to customize the contrast and brightness of the screen, as well as adjust the volume and choose the ringtone melody.
Night vision
	The external unit of the SILVERCLOUD House 715 intercom is equipped with infrared LEDs, which allows image capture even in very low light conditions. The video camera, with a resolution of 628 x 582 pixels and 420 TV lines, 3.6 mm lens and a viewing angle of 90 degrees, is protected from rain by a shield positioned in the upper area of the housing.
Two-way communication
The SILVERCLOUD House 715 intercom works as a closed-circuit video monitoring system, in which the outdoor unit transmits images to the monitor inside the house. In addition to video monitoring, the intercom also allows two-way communication between the indoor and outdoor units. The maximum operating distance is up to 100 m.
Electromagnetic gate opening function
	The indoor unit allows the connection and control of an electromagnetic doorbell (purchased separately). By simply pressing the Unlock button you can remotely unlock the electromagnetic doorbell allowing access to visitors.

Product identification
Product code	PNI-SC715YR300
General video intercom features
Unlock the gate	Yes
External monitoring	Yes
Supply voltage	15 V DC
Working distance	maximum 100m in open field
Video camera features
Wireless
Ethernet
Night vision
Image capture
Resolution
Two-way audio
Motion detection
Card slot
Dedicated application
size	Outdoor unit: 126 x 56 x 33 mm
Features of Yala
Type yala	Applied
Inside opening type	Electrical / Mechanical
Supply voltage	7 - 12V
Consumption	2 -3.5A at 12V
Drive type	Normally open
size	125.5 x 101 x 39 mm
Application method	Right
Operating time	0.5s at 12V
Retention system	Yes, mobile tongue/puppy
Recommended door thickness	35-50mm
Working temperature
The package contains
interphone	Yes
lock	Yes
Manuals	Yes

PNI-SC715

Lang	Type	Name	Link
EU	Declaration of Conformity	Declaratie de conformitate EN, ES, HU, IT, PL, RO	Link
EU10	Declaration of Conformity	Declaration of conformity EU9	Link
EU10	User manual	User manual EU10	Link
RO	Declaration of Conformity	DC&CG	Link

PNI-SCYR300

Lang	Type	Name	Link
RO	User manual	Conectare dioda de protectie in circuit de comanda yale	Link
