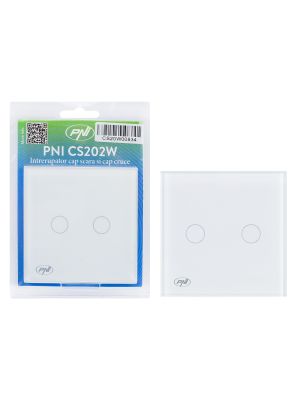

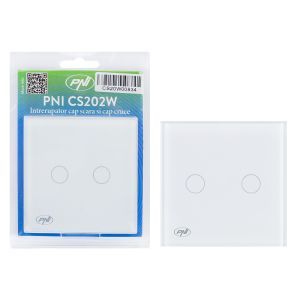

Ladder head switch and double cross head switch

Ladder head switch and double cross head switch with PNI CS202W glass touch, white with LED indicator, 800W / switch

Simple plug-in socket

Simple built-in socket PNI WP101B, with glass frame, 16A, 3700W, 230V, black

Simple ladder switch and cross switch with touch PNI CS101W made of glass, white with LED indicator, 800W

Simple ladder switch and cross switch with touch PNI CS101W made of glass, white with LED indicator, 800W
£11.61
Availability: In stock
SKU
PNI-CS101W

Intrerupator cap scara si cap cruce dublu cu touch PNI CS101W

Touch buttons and tempered glass panel

The PNI CS101W Simple Touch Ladder and Cross Head Switch can be operated by touching the touch button.

The LED indicator shows the status of the lights (on – red LED, off – blue LED).

The capacitive, quick-touch front panel made of scratch-resistant tempered glass also provides protection against electric shock in case you touch the switch with wet hands.

Head-to-ladder circuit

The advantage of a two-way circuit breaker is the ability to control a single device from two separate locations.

Suitable locations for installing such a switch are stairs, a long corridor or a very large room.

So, imagine, it's late at night and you're at the bottom of a staircase. Press the switch to illuminate the stairs as you climb. Once you've reached the top of the stairs, simply press the two-way switch at the top to turn off the staircase light. The same applies to a long corridor or a large room with several entrances.

Intrerupator cap scara si cap cruce dublu cu touch PNI CS101W

Intrerupator cap scara si cap cruce dublu cu touch PNI CS101W

Ladder head and cross ladder head

The PNI CS101W switch can operate in both head-to-scale and head-to-scale to cross-head modes.

Note: in ladder head - cross head mode, up to 8 single, double or triple switches can be connected in the same installation.

We recommend that the installation of the circuit breaker be carried out by a qualified electrician.

Make sure that before installing the circuit breaker you have disengaged the general fuse of the home. Observe all safety precautions to avoid personal injury and damage to property.



Write Your Own Review
You're reviewing:Simple ladder switch and cross switch with touch PNI CS101W made of glass, white with LED indicator, 800W
Your Rating
Product identification
Producer NIP
Product code PNI-CS101W
General features
Supply voltage 110-240VAC
Output power 800W
Maximum load supported 1000W
Rated current max. 3.6 A
Standby consumption 0.02W
Material Fire-resistant glass/PC
Color White
size 86 x 86 x 35 mm
Weight 155 grams
Moisture 10% - 95%
Working temperature -26°C ~ +80°C
The package contains
Switch Yes, simple
Condenser
User manual Yes
Mounting screws Yes
