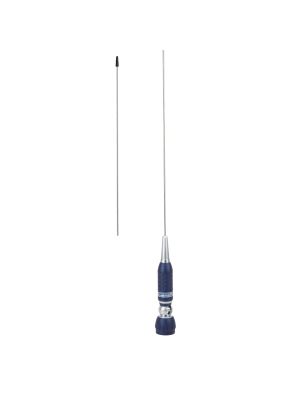

Sirio Turbo 2000 PL Blue Line CB antenna, 145cm without cable
performancesThe performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of installation and use: SWR <1.2, Maximum applied power 1000 W, impedance 50 Ohms, Stainless steel, etc. | |
Communication distanceThe communication distance is another decisive factor in the purchase and use of a CB antenna. Thus, the maximum communication distance of 15 km or even more is achieved under ideal working conditions: calibrated antenna, open field without obstacles, the station with the legally permitted maximum power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can reduce this distance. | |
Antenna lengthThe length of the antenna is another very important factor that can influence the communication distance in traffic. Thus, the longer the antenna, the greater the range of action. The Sirio Turbo 2000 PL Blue Line CB antenna is 145 cm long. | |
Adjustable angleThis is one of the few PL antennas that can be tilted at 90 degrees to enter low-height passages, garages or parking lots. Apart from these situations, an inclination greater than 30 degrees is not recommended because it can affect the performance of the antenna. |
Product identification | |
Product code | 2202105.41 |
Work tape | ? B |
Product color (spike) | Silver |
General characteristics | |
Working frequency | 27 - 28.5 MHz |
Maximum power applied | 1000W |
Minimum SWR in the center of the band | less than 1.2 |
Length | 145 cm |
Impedance | 50 Ohms |
Connector type | PL |
Hole diameter | 12.5 mm |
Weight | 530 g |
Polarization | vertically |
The package contains | |
Radio station antenna | Yes |
Antenna coupling plug | Yes |
