SmartHome SM400 Intelligent Smart Home Smart Kit Smart Smart Smart Smart SM433 to open doors and gates

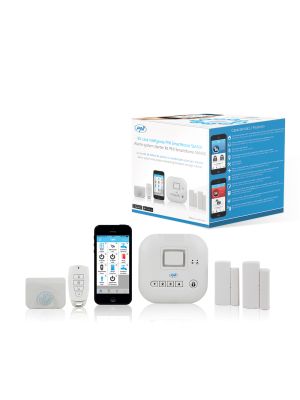

PNI SmartHome SM400 smart home kit with smart relay PNI SmartHome SM433 for opening gates and doors
You have complete control over your home remotely through the PNI Smart House application (Android or iOS).
The central unit in the kit can control up to 100 sensors and intelligent relays.
The central unit that is connected by cable to the router in the house is the "brain" of this alarm and automation system. It coordinates the activity of all sensors, relays and receivers. It has an integrated 110dB siren, it can be powered both by batteries (4 x AAA) and by a power adapter (included) and it has a keyboard consisting of 4 numeric keys through which you can arm / disarm the system. The system can be armed/disarmed remotely from the application.
Remotely control the garage door
Simply replace or install this relay in parallel with the garage door control button. Thus, the intelligent relay takes control of the garage door by receiving a closing or opening signal from a programmed remote control or from a central unit through the PNI Smart House application.
NOTES:
• The PNI SmartHome SM433 smart relay is only compatible with the PNI SmartHome SM400 system which includes the remote control, central unit, motion sensor and magnetic contact.
• To be able to remotely control the intelligent relay, you must download the PNI Smart Home application (Android and iOS)
Easy installation
The smart relay is very easy to install. Simply run the cables coming from the garage door control button through the relay clamp.
Remotely control the access gate
The intelligent relay PNI SmartHome 433 can control not only the garage door but also access gates. Thus, to open the main gate when you get home, you no longer have to get out of the car; it is enough to enter the application and open the gate. Comfortable, simple, convenient.
Control unit features | |
feeding | 6V / 500mA |
size | 106x106x34 mm |
Battery | 4 x AAA alkaline batteries (not included) |
Number of supported wireless accessories | Maximum 100 |
Built-in siren | Yes, 110dB |
Frequent communication with accessories | 433 MHz |
Color | White |
Motion sensor features | |
feeding | 2 x AA 1.5V batteries (not included) |
Frequent communication | 433 MHz |
Wireless | Yes |
Wireless communication range | Up to 100 m |
size | 60x50x23mm |
Color | White |
Adjustable sensitivity | Yes |
Low battery warning | Yes |
Features magnetic contact | |
feeding | 1 x AAA 1.5V alkaline battery (not included) |
Frequent communication | 433 MHz |
Wireless | Yes |
Wireless communication range | Up to 100 m |
Low battery warning | Yes |
size | 22 x 65 x 20 mm |
Color | White |
Remote control features | |
feeding | 3V |
Frequent communication | 433 MHz |
size | 60x30x12mm |
Color | White |
General characteristics | |
Dedicated application | PNI Smart house |
Smart relay | |
Type Module | Relay connections |
feeding | 12V / 100mA |
Frequency | 433.92 MHz |
size | 69 x 55 x 20 mm |
Material | ABS plastic |
Communication distance | up to 30 m |
The package contains | |
Control unit | Yes |
Magnetic contact | Yes, 2 pcs. |
Motion sensor | Yes |
Power supply control unit | Yes |
Internet cable | Yes, 60 cm |
Smart relay | Yes |
