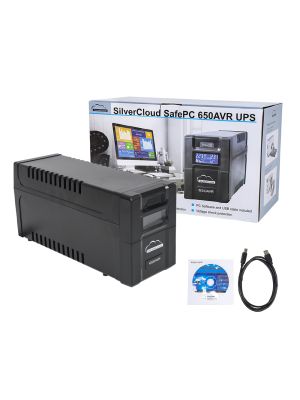

UPS SilverCloud SafePC 650AVR power 360W LCD screen PC monitoring software

UPS SilverCloud 850VA with pure sinusoidal LCD display for thermal power plants

UPS Displays the LCD screen for pure heat sinks
£105.64
Availability: In stock
SKU
PNI-SCP850

A4aah

A4-pure

UPS - Pure Sinusoidal uninterruptible power supply for thermal power plants

The SilverCloud 850VA UPS with LCD screen is the ideal solution for protecting wood-burning boilers, equipment with engines and other electronics sensitive to power outages for short and long periods of time. The device works with an input voltage of 140~280VAC+/-2% providing a constant output of 230 V +/- 10%.

Overload and short circuit protection

SilverCloud 850VA is equipped with an intelligent protection system in case of overcharging, excessive discharge or short circuit and with a fuse that will protect the electronic equipment from possible damage due to a short circuit.

protection

A4_protection

AVR - Output voltage stabilization

The device has an integrated voltage stabilizer on the output, as it provides a voltage as correct as possible, and close to the one required to power the electrical and electronic equipment in your home.

USB-PC Communication / Monitoring

The SilverCloud 850VA UPS with LCD screen is equipped with an intelligent monitoring/control and diagnostic system of the operation, technical parameters, which can be monitored from a PC/Laptop with the help of the USB connection and cable available in the package. Once connected to a PC/Laptop with Internet access, you can monitor the operating parameters of the UPS remotely, via the Internet, with the help of applications such as TeamViewer.

A4_mon

battery

Autonomy: External battery/accumulator

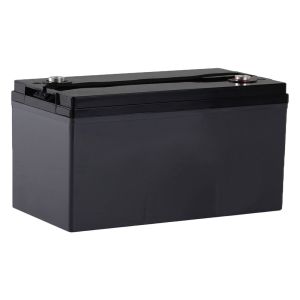

The device allows the connection of a car battery or, as recommended, of a high-capacity GEL VRLA AGM battery (50 - 200Ah) that does not require maintenance and has a long period of use. This offers a backup time of even a few hours in case of power failure, the duration varying depending on the recorded instant consumption. The device automatically charges the battery when it runs out of power.

⊗ ATTENTION: SilverCloud 850VA UPS requires battery connection to work.

LCD screen and intelligent menu

The UPS warns you both audibly and visually in the event of a low battery level, in the event of switching to battery power or in the event of overcharging. The LCD screen allows you to monitor the operating status of the device, view the battery level and warnings.

A4_menu

A4_connect

Connections available

The SilverCloud 850VA UPS has 2 schuko outputs for powering electronic devices at 230V, an input/output for the protection of the fixed telephone line, and a USB connector for monitoring/diagnosing the system on a PC/Laptop.

Write Your Own Review
You're reviewing:UPS SilverCloud 850VA with pure sinusoidal LCD display for thermal power plants
Your Rating
entry
tension 140~280VAC +/-2%
Frequency 45-65 Hz
AC Auto Restart Yes
Low/high frequency alert Yes
output
tension Inverter: 230VAC (+/-2% RMS), AVR: 195VAC-245VAC
Frequency 50Hz/60Hz +/-0.2Hz
Wave type Pure sinusoid
Inverter efficiency (max) > 75%
Bypass efficiency > 95%
Transfer time Typical: 6ms 10ms (max)
Battery
Type With acid lead
Capacity 30A - 200A
General characteristics
Screen Yes
Multifunctional smart menu Yes
Power 850 VA / 600 W
Output voltage stabilization Yes : 195VAC-245VAC
Protection Overcharging / low battery / short circuit / overheating
Overload protection 110%~125%R load - protection after 30S; 125% ~150%R load - protection after 3S; >150%R load - protection after 500MS;
Temperature of use 0 ~ 40 °C
Moisture 10 % ~ 90 % RH without condensation
Alarm sound level ≤ 60 dB
Dimensions / weight 315 x 145 x 210 mm
Communication interface USB
PC monitoring software Yes
Fixed line protection Yes
Power cord length 1.2 m
Compatible battery/accumulator voltage 12 V
Low/overcharged battery alert Yes
Auto-disconnect low/overcharged battery Yes
Battery connection cables Yes, red and black, 80 cm each
VAC output connectors 2 x schuko socket
The package contains
UPS unit Yes
Power cord Yes
User manual Yes
Software CD
Monitoring cable Yes: USB
Car battery connectors Yes



PNI-SCP850
