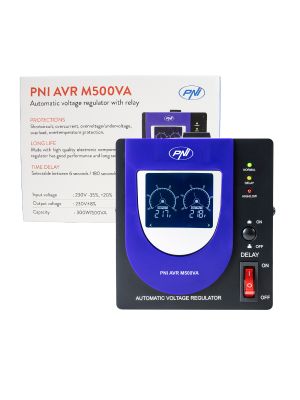

Voltage stabilizer with relay PNI AVR M500VA, 1.4A, 300W, 500VA

Voltage stabilizer PNI SVM1000VA

PNI SVM1000VA voltage stabilizer with servomotor, 800W, 3.6A, 230V output

Voltage stabilizer with relay PNI AVR M1000VA, 2.7A, 600W, 1000VA

Voltage stabilizer with relay PNI AVR M1000VA, 2.7A, 600W, 1000VA
£33.18
Availability: Out of stock
SKU
PNI-M1000VA

Voltage stabilizer, relay, PNI, AVR, refrigerator, TV

No voltage fluctuations

The PNI AVR M1000VA 600W voltage stabilizer with relay has been designed to keep the output voltage as stable as possible. When the voltage from the electrical network fluctuates, the PNI AVR M1000VA will automatically adjust the output voltage to the normal value.

Depending on their capacity, PNI stabilizers have a wide range of applications: electronic devices, household appliances, air conditioners, power tools, refrigerators and in general, electronics that need stable voltage.

How does it work?

When the unit that measures the input voltage detects a variation outside the preset range, it will send a signal to the control unit. This will switch on/off the relays connected to the secondary voltage transformer to compensate for the variations and for the most precise control of the output voltage within the preset range.

Copper coil is the basic component of the voltage stabilizer. Voltage stabilizer with relay PNI AVR M1000VA 600W uses high quality pure copper. Thus, the coil has a longer life and greater efficiency.

Voltage stabilizer, relay, PNI, AVR, refrigerator, TV

Voltage stabilizer, relay, PNI, AVR, refrigerator, TV

Maximum load supported

The maximum load supported by the PNI AVR M1000VA voltage stabilizer is 600W 2.6A.

The stabilizer's 600W 2.6A capacity allows you to connect household appliances, including TVs, printers, fans and more.

Attention: do not connect consumers with loads exceeding the stabilizer's power. For example, electronics with a motor/compressor can have 2-6 times more power than the declared power at startup. Choose the stabilizer taking this into account.

Essential functions

Within the nominal voltage range ±25% 50/60Hz, the PNI stabilizer provides 100% output power. Outside this range, the output power should be according to the attached diagram.

Important functions:

  • output delay (time-delay) - 6 or 180 seconds;
  • automatic overvoltage and undervoltage protection (180V - 250V);
  • overload/overtemperature protection;
  • automatic adaptation to input frequency (50 / 60 Hz).

Voltage stabilizer, relay, PNI, AVR, refrigerator, TV

Video presentation

Voltage stabilizer with relay PNI AVR M1000VA EN

Write Your Own Review
You're reviewing:Voltage stabilizer with relay PNI AVR M1000VA, 2.7A, 600W, 1000VA
Your Rating
Features
Capacity 600W/1000VA
Output connectors 2 x Schuko socket
Output voltage 230V ± 8%
Input frequency 50/60 Hz
Nominal Input Voltage 230V -35%, +20%
Overheating protection Yes
Short circuit protection Yes
Efficiency >98%
Working temperature -10°C ~ +40°C
Humidity ≤90%
Dimensions 125 x 155 x 265 mm
Weight 3.32 kg
Exit delay 6 / 180 seconds
Ventilation fan
Surge protection Yes
Low voltage protection Yes
Phase Single Phase



PNI-M1000VA
