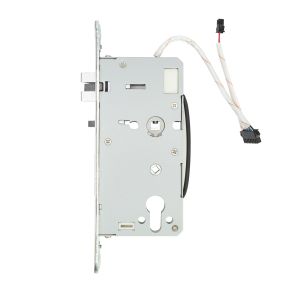

Yala hotel access control PNI CH2000R PRO Gold with card reader opening on the right side
|
Hotel access controlYala Hotel Access Control PNI CH2000R PRO Gold offers a stand-alone solution for the security and access monitoring needs of a hotel, be it large, medium or small. The body of the yala is made of a galvanized alloy providing resistance to impact or shocks. The door you want to mount must have a thickness between 30 and 50 mm. |
Electromagnetic Card ReaderPNI CH2000R PRO Gold offers the possibility of opening a door with the help of an electromagnetic card. It is also provided with a spare key, which can be used in cases of emergency. From the inside the yala has a manual opening mechanism. Yala is compatible with PNI EMC-06 13.56 MHz proximity cards. |
|
|
|
|
Opening on the rightThe PNI CH2000R PRO Gold hotel access control can be used to open a door to the right looking from the outside of the room, as in the image below. |
Power supplyYala PNI CH2000R PRO Gold hotel access control is powered by 4 AA batteries. One set of batteries supports up to 10,000 openings. Yala warns audibly when the voltage drops below 4.8V, a sign that the batteries need to be changed. |
|
|
Monitoring SoftwarePNI CH2000R PRO Gold can only be used in conjunction with the PNI FLH70 card programmer which also contains the monitoring software. Thus, you can configure a complex access control system. |
Product identification | |
Manufacturer | PNI |
Product Code | PNI-CH20RG-PRO |
Color | Gold |
General Features | |
Power supply | 6V (4 x AA alkaline batteries) |
Maximum consumption | 200 mA |
Material | Galvanized alloy |
Vandal-proof | Yes |
Card reader | EM card 13.56MHz |
Mounting type | Appear |
Dimensions/weight | 75 X 60 X 240 mm / 2.24 kg |
Operating temperature | -20 ~ 50°C |
Working Humidity | ≤ 80% |
Opening type | Left inside / Right outside |
Actuation time | less than 1 second |
Door thickness | 30 - 50mm |
Card actuation distance | 0 - 5 cm from sensor |
Package contains | |
Access control unit | Yes |
Installation and user manual | Yes |
Installation accessories | Yes |
